Vortex Rangefinder Binoculars Breakdown: Field Telemetry vs Pure Optics

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Selecting optical gear for long-distance observation often comes down to choosing between all-in-one electronic measurement tools and traditional field binoculars. Having integrated distance telemetry eliminates carrying two distinct devices, allowing observers to spot, range, and calculate adjustments without breaking visual contact. For hunters and outdoors enthusiasts researching vortex rangefinder binoculars, deciding between active laser optics and dedicated glass is essential for balancing field pack weight, battery reliance, and observational workflow.

This guide evaluates five Vortex binoculars to assess how laser telemetry integration compares against dedicated observational glass. We cover three vortex laser rangefinding binoculars featuring integrated rangefinders—the Talon HD 10K, Fury HD 5000, and Ranger HD 3000—alongside two traditional optical models, the Triumph HD 12×50 and Diamondback HD 10×42. By reviewing ranging distances, optical systems, chassis materials, and field performance, you can choose the best vortex rangefinding binoculars for your individual outdoor demands.

Which Vortex Rangefinder Binoculars Should You Buy

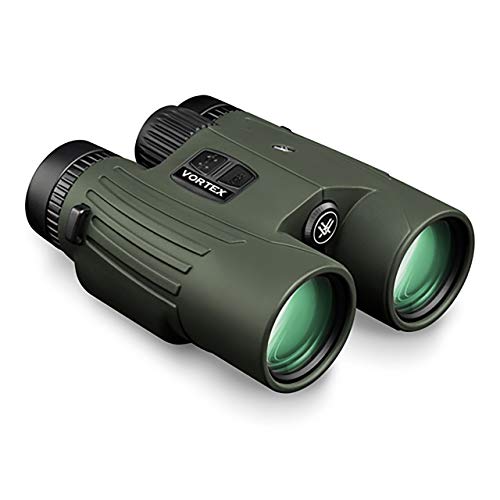

01 Vortex Fury HD 5000 10×42 Laser

Best for Hunters needing dependable angle-compensated ranging

The Vortex Fury HD 5000 10×42 Laser unites observational glass with an angle-compensated rangefinder built for hunters, archers, and shooters. Featuring 10x magnification and 42mm objective lenses in a roof prism housing, this model allows glassing and ranging in one fluid step. Right-side button controls enable one-handed operation, reducing movement in the field. Its primary Horizontal Component Distance (HCD) mode calculates angle-compensated ranges for standard bow and rifle trajectories, while Line of Sight (LOS) mode supports steep-angle, long-distance calculations.

Target isolation is managed through two dedicated modes. Best Mode displays the strongest return signal for primary ranging, while Last Mode reads the furthest distance to range game concealed behind brush or obstruction. Optically, the Fury HD 5000 incorporates HD lenses, XR fully multi-coated surfaces, and dielectric phase-corrected prisms for crisp image transmission. The housing is nitrogen purged for waterproof and fogproof protection, wrapped in rubber armor, and threaded for tripod adaptability.

This optic suits hunters seeking fast target verification without juggling a separate handheld unit. It maintains a 16mm eye relief and 4.2mm exit pupil for comfortable viewing. However, shooters requiring internal environmental sensors or digital ballistic profiles will find greater utility in the Talon HD 10K, while general observers without ranging needs can step to the simpler Diamondback HD.

• Primary HCD mode delivers angle-compensated ranges alongside LOS mode for steep-angle precision
• Dual target modes provide Best Mode for primary returns and Last Mode for obstructed targets
• XR fully multi-coated HD lenses and dielectric phase-corrected roof prisms optimize contrast
• Nitrogen-purged waterproof, fogproof, and shockproof rubber-armored housing with tripod threading

02 Vortex Ranger HD 3000 10×42 Laser

Best for Hunters prioritizing fast scanning in low light

The Vortex Ranger HD 3000 10×42 Laser combines fast distance measurement with an illuminated red OLED display designed for low-light observation. Capable of ranging reflective targets out to 3,000 yards and game up to 1,500 yards, it presents target telemetry clearly against shadowed hillsides and complex terrain. Operating modes include primary HCD angle compensation, LOS mode, and a continuous Scan mode for tracking moving targets.

Equipped with an HD Optical System and fully multi-coated lenses, the Ranger HD 3000 provides color accuracy and resolution across varied lighting conditions. ArmorTek scratch-resistant coatings protect exterior glass elements from abrasions, dirt, and moisture. The unit utilizes a fixed focus layout supported by a +/-5 diopter ocular adjustment and 17mm of eye relief. Built for harsh field environments, its rubber-armored body is waterproof, fogproof, and shockproof.

This model is ideal for archers and rifle hunters who want rapid yardage acquisition without navigating complex ballistic solvers. The included GlassPak harness keeps the unit secured against the chest for instant access. In any thorough vortex rangefinder binoculars comparison, the Ranger HD 3000 serves as an agile, mid-tier ranging unit, giving way to the Talon HD 10K when extreme long-range calculations and environmental monitoring are mandatory.

• Ranges reflective targets up to 3,000 yards and game targets up to 1,500 yards using HCD, LOS, and Scan
• High-contrast red OLED display ensures immediate reading clarity against dark or complex backgrounds
• Rugged rubber armor, ArmorTek lens protection, and waterproof, fogproof, and shockproof construction
• Fixed focus optical design with +/-5 diopter range and an included GlassPak harness

03 Vortex Talon HD 10K Ballistic Laser

Best for Precision shooters needing onboard ballistic solutions

The Vortex Talon HD 10K Ballistic Laser is engineered for extreme long-range targeting and comprehensive firing solutions. Built around a green aluminum chassis weighing 2.6 pounds, this unit reaches reflective targets up to 10,000 yards and game targets up to 2,400 yards. The visual system features an HD optical layout paired with XR Plus lens coatings to ensure exceptional resolution across expansive distances.

Telemetry processing is powered by an onboard GeoBallistics solver and environmental sensors tracking real-time temperature, pressure, humidity, compass heading, and inclination. Target holds appear on an active matrix red OLED display featuring an auto-leveling interface, built-in range card generator, and patented Wind Bearing Capture. Ranging configurations include HCD, LOS, and BAL modes, supported by Normal, ELR, First, Last, and Rain/Fog targeting selections. Vortex Relay integration allows external data synchronization with compatible devices.

This optic caters directly to precision rifle competitors and long-range hunters who require instant elevation and wind solutions inside their optic. It eliminates the need for separate weather meters or ballistics cards. However, for hunters operating at standard sporting distances who do not need heavy environmental computing, the lighter Fury HD 5000 or Ranger HD 3000 provides a less complex, easier-to-carry package.

• Extended laser range measuring up to 10,000 yards on reflective targets and 2,400 yards on game
• Integrated GeoBallistics solver with onboard sensors tracking temperature, pressure, humidity, and tilt
• Active matrix red OLED display with auto-leveling telemetry and Wind Bearing Capture
• Tripod-adaptable aluminum body with ArmorTek lens coatings and complete waterproof sealing

04 Vortex Triumph HD 12×50 Binoculars

Best for Stationary glassers seeking high magnification scouting

The Vortex Triumph HD 12×50 Binoculars prioritize raw optical magnification and light transmission over electronic features. Featuring 12x magnification paired with generous 50mm objective lenses, these full-size binoculars are built for glassing open terrain and distant ridgelines. The HD optical system uses fully multi-coated glass elements designed to minimize chromatic aberration, maintain color fidelity, and boost brightness in twilight conditions.

Mechanical construction relies on a shockproof polycarbonate chassis covered in full rubber armoring for a secure, slip-resistant grip. Internal nitrogen purging delivers complete waterproof and fogproof protection against moisture and temperature swings. The optical assembly includes a center focus wheel, an adjustable diopter, twist-up rubber eyecups, and 16mm of eye relief. The binoculars ship with a neck strap and an adjustable GlassPak chest harness.

The Triumph HD 12×50 suits wildlife viewers, hikers, and hunters who need extended optical magnification without relying on batteries or digital reticles. Its tripod mount threading allows steady stationary glassing from a tripod or window mount. Compared to a specialized vortex spotting scope, these binoculars offer wide binocular comfort, though they yield to rangefinding models when distance measurement is required.

• High-power 12x magnification with 50mm objective lenses for extensive observation reach
• HD optical elements with fully multi-coated glass for reduced chromatic aberration and clear views
• Nitrogen-purged polycarbonate chassis with full protective rubber armor and tripod mount threading
• Center focus wheel, adjustable diopter, twist-up eyecups, and an included GlassPak harness

05 Vortex Diamondback HD 10×42 Binoculars

Best for Mobile outdoor observers wanting lightweight clarity

The Vortex Diamondback HD 10×42 Binoculars represent a standard field binocular engineered for pure optical clarity and rugged portability. Built with 10x magnification and 42mm objective lenses, this model utilizes select HD glass elements with fully multi-coated surfaces to cut chromatic aberration and ensure edge-to-edge sharpness. Dielectric multi-layer prism coatings maximize light transmission, delivering bright, color-accurate images when glassing shaded timber.

The housing is purged with argon gas and sealed with O-rings to deliver dependable waterproof and fogproof performance across varied field environments. Exterior lenses feature ArmorTek coatings to resist scratches, oil, and trail dirt. Focusing is managed via a center focus wheel and a right-eyepiece diopter with a +/-3 adjustment range, accompanied by twist-up eyecups offering 15mm of eye relief. The chassis features protective rubber armor and tripod adaptability.

This optic is tailored for mobile hunters, naturalists, and outdoor enthusiasts who want clear, reliable field glass without electronic maintenance. Shooters comparing traditional vortex binoculars 10×42 with electronic hybrids will appreciate the Diamondback HD for its balanced 4.2mm exit pupil and lightweight carry. It yields to the Fury or Ranger models when active laser ranging is essential.

• Versatile 10x magnification with 42mm objectives delivering a 4.2mm exit pupil
• Dielectric prism coatings and fully multi-coated optics for enhanced light transmission and color accuracy
• Argon-purged, O-ring sealed chassis with ArmorTek scratch-resistant exterior lens protection
• Center focus mechanism, +/-3 diopter adjustment, tripod mount capability, and GlassPak harness

What Sets These Models Apart

The primary division across this lineup centers on active laser telemetry versus analog optical observation. The Talon HD 10K, Fury HD 5000, and Ranger HD 3000 integrate electronic transmitters, optical beam splitters, and internal display reticles into the visual path. This architecture delivers immediate range measurements and angle calculations directly into your field of view, accelerating target acquisition. However, these systems rely on internal batteries and add electronic complexity to your field kit.

In contrast, the Triumph HD 12×50 and Diamondback HD 10×42 focus entirely on glass performance. By omitting internal circuit boards and display coatings, pure optical binoculars maximize natural light transmission and eliminate electronic maintenance. While pairing a traditional binocular with a dedicated unit like a vortex spotting scope hd setup remains popular for stationary glassing, integrated rangefinding binos offer an unmatched single-device solution for fast-moving hunts.

Buying Tips for Vortex Rangefinder Binoculars

When deciding which vortex rangefinder binoculars to buy, consider how distance measurement integrates with your field mobility. Carrying a combined rangefinding optic streamlines gear management by eliminating the physical transition between binoculars and a separate rangefinder. For archery and rifle hunters in uneven country, choosing a model with Horizontal Component Distance (HCD) angle compensation ensures your shot corrections account for incline without manual recalculation.

Display technology is another vital factor when choosing between vortex laser rangefinding binoculars. In low-light periods such as early morning or dusk, high-contrast red OLED displays provide significantly better legibility against dark timber and brush compared to standard black reticles. Ensure exterior lens coatings feature protective treatments such as ArmorTek to guard exposed glass against abrasions, rain, and grit during demanding field travel.

Finally, evaluate overall carry weight and mounting options for your observation style. Precision ballistic models with aluminum housings, such as the 2.6-pound Talon HD 10K, benefit greatly from tripod adaptability during extended glassing sessions. Utilizing the included GlassPak harnesses across these models distributes carry weight across the shoulders, protecting your optic while keeping it positioned for immediate deployment.
